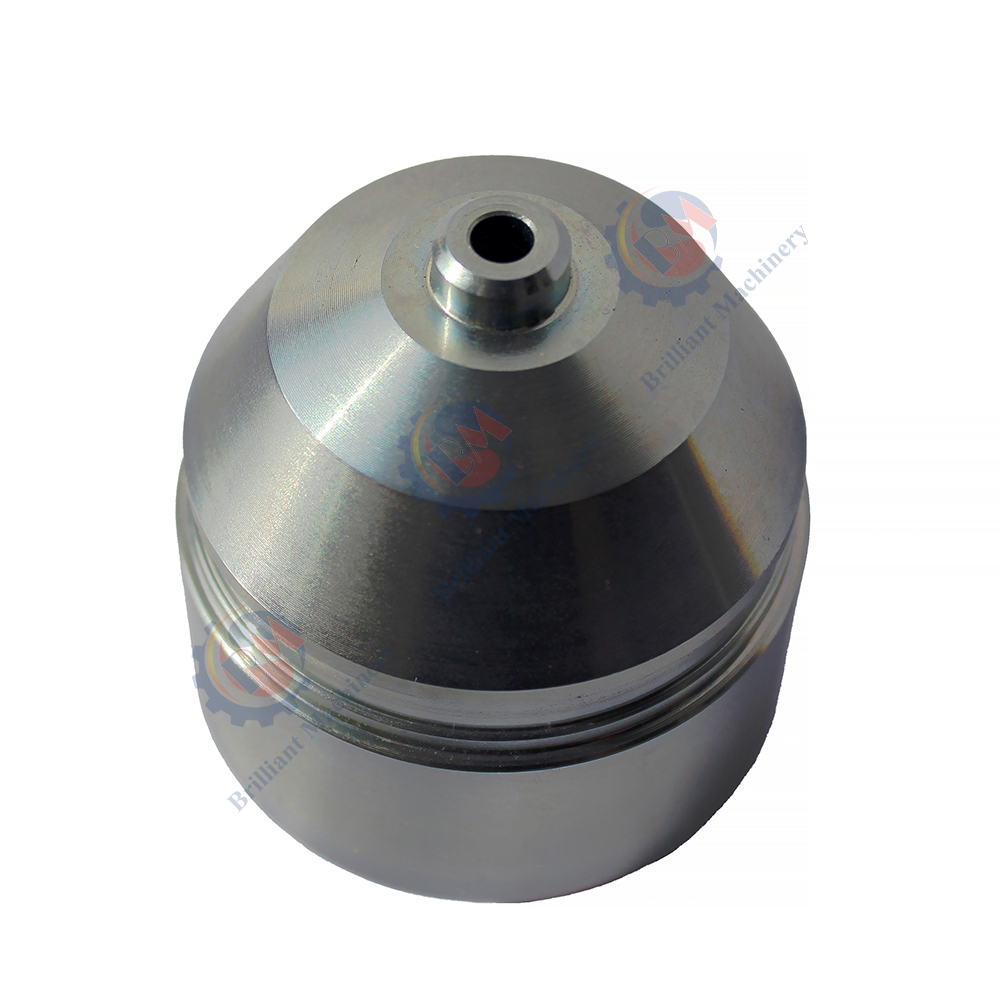

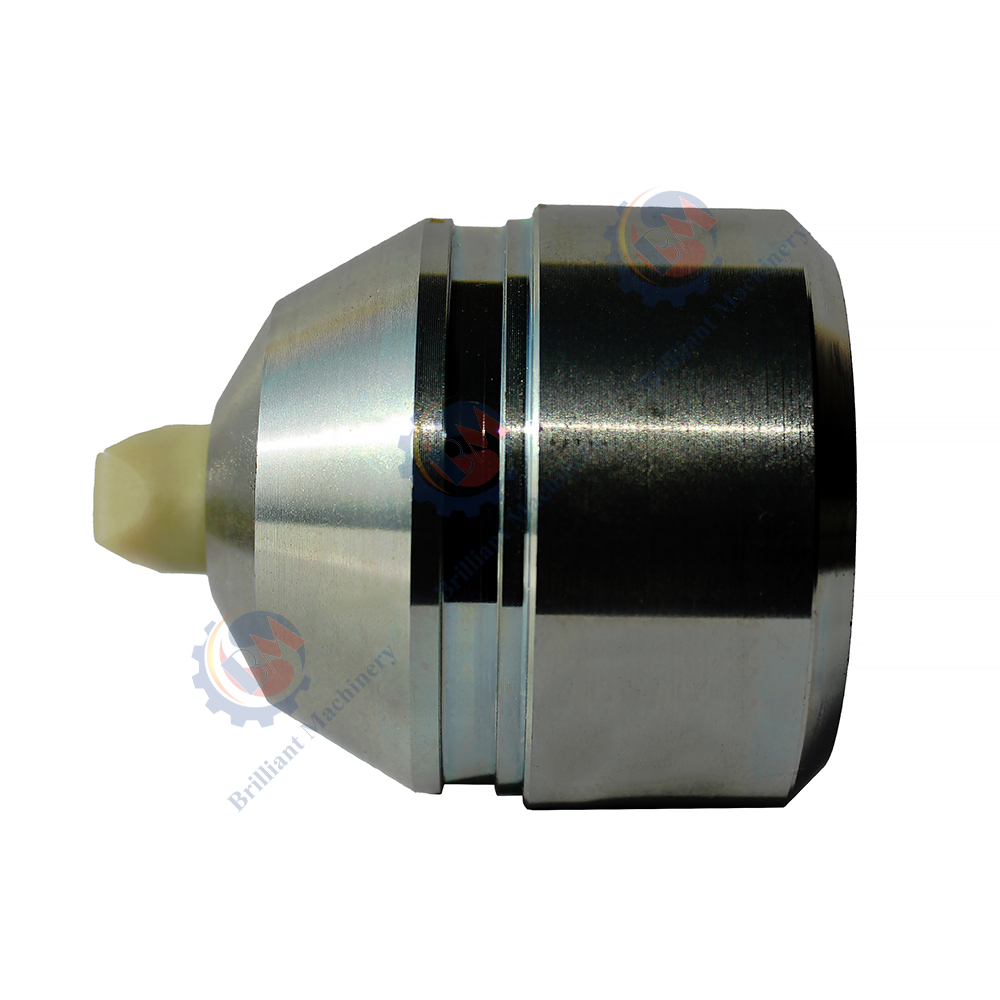

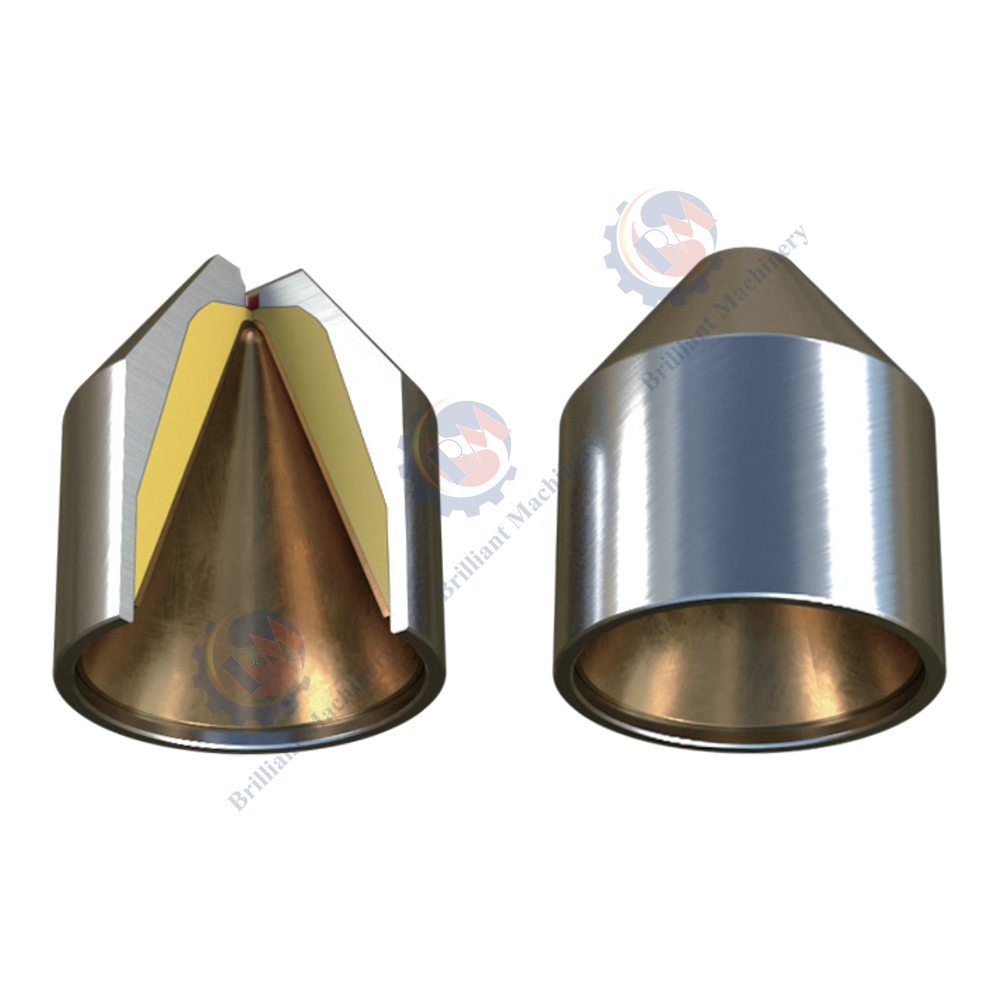

Deep Penetrating Shaped Charges (DP Charges) don Arziki Casing Guns
Kayan abu
Cajin DP yana amfani da madaidaicin ƙarfe na ƙarfe mafi ƙarfi na ƙarfin ƙarfi da tsawon rai waɗanda aka zaɓa dangane da ƙarfi da juriya ga matsi na ƙasa. An zaɓi kayan fashewar caji na musamman tare da mafi girman aiki a cikin aikace-aikacen rijiyar mai zurfi tare da fashewa mai sarrafa gaske wanda ke shiga sosai tare da ƙarancin amfani da abu. Haɗin ɗorewa mai ɗorewa da abin caji mai inganci yana ba da garantin daidaiton aiki na cajin a cikin yanayi mara kyau.
Ƙayyadaddun bayanai
Diamita: An ƙirƙira ta musamman tare da ra'ayi na samar da zurfafa da ingantattun ramuka don dawo da hydrocarbon da kuzari mai kyau.
Tsawon: Wanda aka keɓance don ƙara ƙarfin canja wurin makamashi, yana tabbatar da samuwar rami mai inganci.
Abun fashewa: An tsara shi tare da kyakkyawan zurfin shigar ciki da fitarwa mai nauyi tare da ƙarancin ɓarna.
Fitar Makamashi: Yana ba da kuzari akai-akai don ƙirƙirar iri ɗaya da ratsa jiki.
Juriya na Matsi: Tare da ƙarfin jurewa yanayin matsa lamba na zurfin da matsakaicin rijiyoyi.
Daidaituwa: An ƙera shi tare da Bindigogin Casing na Tattalin Arziki musamman tare da santsi da garantin aiki.
| Bayanin Cajin Siffar | Ayyukan API na Siffar Caji | ||||||||
| Gun OD (a) [mm] | Nau'in | Nauyin fashewa (g) | Nau'in fashewa | Gwajin Gun OD (a) [mm] | Shot Density (spf) [spm] | Tsayawa | Casing OD (a) [mm] | Ramin Shiga (a) [mm] | Shiga (ciki) [cm] | Nau'in Bayanai |
| Siffar Caji don Bindigan Casing Tattalin Arziki | |||||||||
| 3-1/8 [79] | Zurfin Shiga Cajin | 19.0 | RDX | 3-3/8 [86] | 6 [20] | 60° | 4-1/2 [114] | 0.41 [10.41] | 22.04 [55.98] | API RP-43 |
| 4 [102] | Zurfin Shiga Cajin | 19.0 | RDX | 3-3/8 [86] | 6 [20] | 60° | 4-1/2 [114] | 0.41 [10.41] | 22.04 [55.98] | API RP-43 |
Hanyoyin samarwa
Ƙirƙirar cajin DP ya haɗa da tsari mai tsari a cikin yunƙurin sanya kowane caji ya dace da mafi girman ma'auni na ƙwarewa:
Gina Casing: An samar da rumbun karfen da kyau kuma an sanya shi cikin barga mai ƙarfi da ƙarfi.
Load da abubuwan fashewa: Ana ɗora kayan fashewar da aka ƙididdige daidai a cikin gidaje tare da taimakon hanyoyin sarrafa kai don guje wa duk wani rashin daidaituwa.
Warkewa da daidaitawa: Ana daidaita cajin ta yadda abubuwan fashewar za su kasance marasa lahani da kwanciyar hankali yayin jigilar kaya da sarrafawa.
Ƙimar Machining: Ana yin gyare-gyaren tuhume-tuhumen da madaidaicin gaske bayan an gama warkewa don zama daidai girman girma kuma ya dace da Bindigan Casing Tattalin Arziki.
Gwajin Karshe: Cajin yana ɗaukar gwajin aiki da gwajin aminci don tabbatar da cewa ya dace da kowane takamaiman bayani da ake buƙata kafin jigilar kaya.
Gwajin inganci & dubawa
Cajin DP yana tafiya ta ƙwaƙƙwaran gwaji don aiwatarwa bisa ƙa'idodin da ake sa ransa:
Duban Girma: Tabbatar da cewa kowane caji yana da madaidaicin girma da dacewa da ake buƙata na Bindigan Casing Tattalin Arziƙi.
Gwajin fashewa: Duba cajin fashewa akan sakin makamashin da ake buƙata da zurfin daidaiton huɗa.
Gwajin Matsi: Samfuran matsi a cikin yanayin ƙasa don cajin zai yi aiki a cikin yanayin filin gaske.
Tabbatar da Tsaro: An ƙaddamar da cajin ga ƙa'idodin aminci na duniya don amintaccen jigilar kaya, ajiya da sarrafawa.
Tabbatar da Aiki: Gwajin ƙarshe na tabbatar da idan cajin ya kai girman girman da ake tsammani, zurfin da inganci.
Mabuɗin Siffofin
Mai Tasiri: An ƙera shi tare da haɗaɗɗen ɓangaren kasafin kuɗi kuma duk da haka yana da tabbacin sakamako mai kyau da kwanciyar hankali.
Zurfafa Shiga: Iya gina zurfin shiga wanda ke ƙara buɗe rijiyar burtsatse.
Amintaccen fashewa: Yana ba da mafi girman ƙarfin fashewa tare da daidaitattun huɗaɗɗen yanayi a cikin yanayi mara kyau.
Babban dacewa: An ƙirƙira shi musamman tare da amfani tare da Bindigogin Casing Tattalin Arziki tare da fage mai santsi da sauƙin mu'amala.
Dorewa: Gina don jure babban matsi da yanayin zafi da ake samu a cikin mahalli mai zurfi.
Aikace-aikacen masana'antu
Tattalin Arziki Casing Guns' zargin DP samu farko aikace-aikace a cikin man fetur da kuma iskar gas bangaren game da filin perforation rijiyar da rijiyoyin. Abubuwan amfani na farko sun haɗa da
Matsakaici zuwa Zurfin Rijiya: An yi shi musamman don ƙira na yau da kullun da zurfi a cikin rijiyoyi a zurfin zurfi.
Rushewar Ruwa: An yi amfani da shi a cikin matakai don ƙirƙirar hanyoyin da ake yin allurar ruwa da proppant.
Tushen al'ada da na al'ada: Mafi dacewa ga rijiyoyin tushe na al'ada da shale mara kyau da madaidaitan iskar gas.
Ingantattun Samfura: An yi amfani da shi cikin haɓaka mai kyau don haɓaka kwararar ruwa ta hanyar haɓaka damar shiga rijiya.
Marufi da Ajiya
Ana tattara cajin DP daidai a cikin kwantena masu hana girgiza ta hanyar da ba za ta cutar da su yayin jigilar kaya ba. Kunshin kuma yana tabbatar da cewa cajin zai kasance daidai kuma zai kasance daidai da ƙa'idodin jigilar kayayyaki masu haɗari. Ya kamata a sanya cajin daidai a cikin yanayin sanyi da bushewa kuma kada a sanya danshi, zazzabi, da girgiza a cikin ƙoƙarin kiyaye su cikin kyakkyawan aiki da yanayin inganci har sai an yi amfani da su.
Jirgin ruwa
Jirgin DP yana caji bisa ka'idojin jigilar kayayyaki masu haɗari a matakin duniya. An yi jigilar cajin ta hanyar da za su kasance cikin yanayi mai kyau da kwanciyar hankali yayin jigilar kaya. Jirgin ya haɗa da samar da waƙa-da-trace da takaddun aminci masu mahimmanci ga abokin ciniki ta yadda za su yi jigilar kaya da karɓar caji cikin sauƙi da sauri a wurin abokin ciniki kuma a aika su nan da nan.
